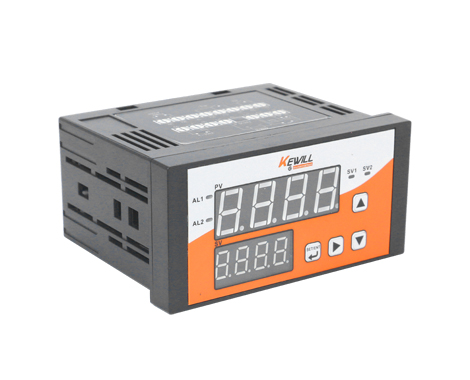

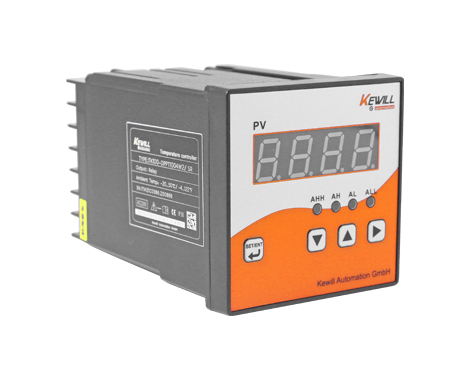

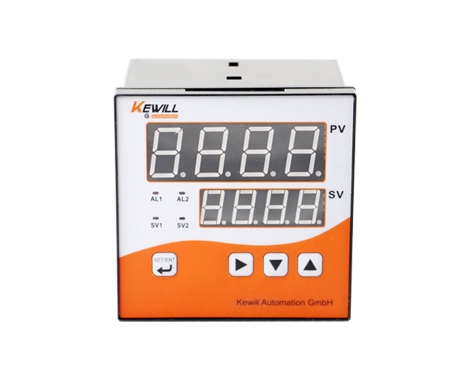

Introduction

TK100 uses a computer chip as the main control unit, adopts multiple digital filter circuits, automatic interference recovery, PID control and self-tuning functions, and receives the original signal of the temperature sensor.

technical parameter

Temperature and Accuracy
Ambient temperature:			0ºC...50ºC
storage temperature:			0ºC...50ºC
Relative humidity:			35%~85% (no condensation)
control precision:			≤±0.25%FS
Resolution:			1ºC
Display method:			4 bit digital tube

Output power supply and wiring
Power Range:			AC 180~240V,50Hz
Relay load:			220VAC、3A
Maximum power consumption:			＜5W
Lead way:			Terminal wiring

Material pressure protection
Protection class:			IP30
case:			Cast aluminium body & stainless steel 1.4301 (304)

Selection table

TK100-

Economical Thermostat

Dimensions

48×48×83.5 hole size 45*45 small square

48×96×83 hole size 45*91 vertical compact rectangular

96×48×83 hole size 91*45 horizontal compact rectangular

72×72×83 hole size 67*67 square

96×96×83 hole size 91*91 large square

160×80×70 hole size 149*75 horizontal rectangular

control method

PID control

Bit control

input signal

k-degree thermocouple

E graduated thermocouple

J-graded thermocouple

Cu50 thermal resistance

PT100 thermal resistance

alarm type

No output function

relay contact switch

Logic level output (for SSR solid state relay)

Single-phase thyristor zero-cross trigger output (used to control thyristor)

Meter power

180-240V AC

Temperature initial setting range

0...100℃

0...150℃

0...400℃

0...600℃

0...800℃

0...1000℃

The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
