Bimetallic thermometer is a field detection instrument for measuring low and medium temperature. The temperature of various liquids and gases can be directly measured. The main component of the bimetal thermometer is a bimetal sheet composed of two kinds of metal sheets stacked together. It works on the principle that two different metals expand differently when the temperature changes. It is wound into a spiral shape. When the temperature changes, the spiral bimetallic sheet drives the pointer to rotate, and the meter will display the corresponding temperature value.

main feature

On-site temperature display, intuitive and convenient; safe and reliable, long service life, fast reading.

application

Industry, petroleum, chemical industry, heating system, pipeline, machinery manufacturing and general factory construction, etc.

technical parameter

structure type: Radial
Threaded interface: 1/2"NPT other optional
temperature range: 25...125 ℃ (can be customized)
Surface diameter: 80mm
Accuracy: ±1%
Cover ring: Rolled, disc panel
Probe Diameter: 6.35mm
Cover material: high translucent glass
Dial Material: All stainless steel SS304
Probe Material: Stainless steel 1.4301 ( 304 ) 1.4435 (316L)
Temperature tube length: 150mm ( 50-2000mm optional)
Protection class: IP55 (dust proof, water spray)

Selection table

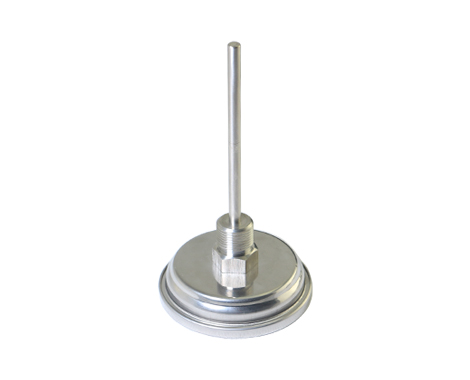

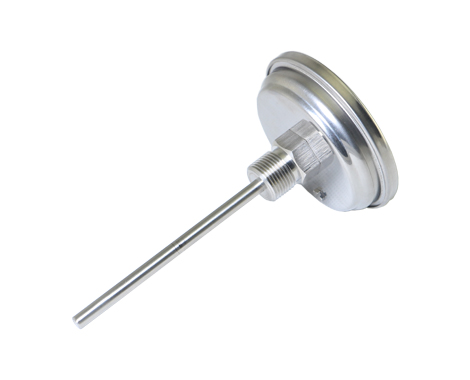

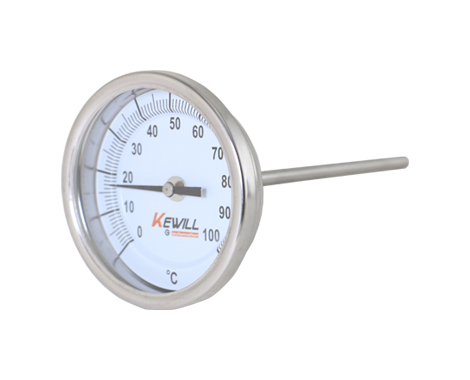

TBT10-Axial Bimetal Thermometer

temperature range

25...125℃
Customized
Interface thread

NPT1/2''
Customized
Probe length (without threaded part)

50mm
100mm(*)
150mm(*)
Customized
Dial diameter

80mm
Customized
Wetted material

Wetted material: stainless steel 1.4301 (304) (*)
Wetted material: stainless steel 1.4435 (316L)
This PDF does not contain the complete data of the selection table. For selection, please contact the sales staff or email to sales@kewill-auto.cn to obtain the complete sample.
Remarks: "*" is marked as stock standing or fast delivery
