Introduction

Principle & Structure

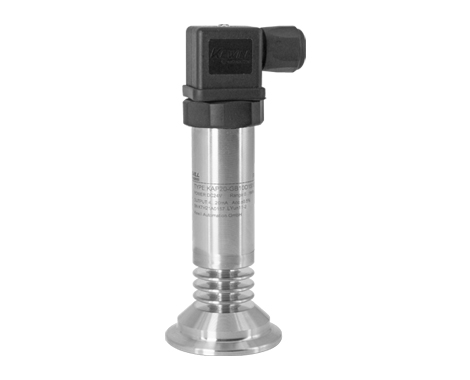

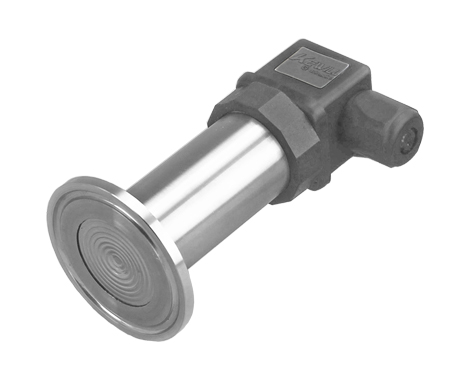

The KAP20 pressure transmitter uses a flat-film silicon piezoresistive isolation diaphragm oil-filled core as the signal measuring element, and the signal processing circuit located in the stainless steel shell converts the sensor signal into a standard output signal. Effectively prevent the problem of easy crystallization medium clogging the pressure inlet.

Features

● Ф50.4 universal sanitary clamp chuck connection

● Wide measuring range 0~100bar

● Stainless steel structure or cast aluminum explosion-proof structure

● IP65

application

Non-corrosive gas and liquid pressure measurement of 316L stainless steel.

Used in medical, biological products, food hygiene and other industries.

Used in paper chemical industry, sewage level and beverage tank pressure measurement.

technical parameter

Measuring range:0~350mbar…100bar
Overload allowed:Less than or equal to 1.5 times the rated range
Pressure Type:gauge pressure, absolute pressure
Accuracy:±0.25% (typ.) ±0.5% (max.)
Long term stability:±0.1%FS/year (typical) ±0.2%FS/year (maximum)
Zero temperature drift:±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
Full-scale temperature drift:±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
Operating temperature:-20℃~80℃
Storage temperature:-40℃~120℃
Power supply:≥10KΩ(0..10V),≥5KΩ
output signal:≤(UB-10)V/ 0.02A (4~20mA)
Pressure port:Clamp chuck
shell material:Stainless steel or cast aluminum
Diaphragm material:Stainless steel 1.4435 (316L)
O-ring:fluororubber
cable:polyethylene
Insulation resistance:100MΩ 100VDC
Enclosure rating:IP65

Selection table

KAP20-Sanitary Flush Diaphragm Pressure Transmitters

Measuring range

Gauge pressure (see the range code table for the range) (*this is a general selection)

Absolute pressure (see range code table for range)

Power supply

10~30VDC

output signal

4~20mADC

1~5VDC

Threaded interface

Clamp connection (Ф50.4 )

Electrical connections

Hessman terminal connector (DIN43650)

Explosion-proof functional housing

(special alternative) VARIO

LCD display unit

Matching installation chuck and clamp fastener
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
