Principle & Structure
It is suitable for the measurement of the medium with particulate impurities or components and the measurement of the medium with lower viscosity. Wide range (0~100mbar; 0~200bar), can be used to measure gauge pressure and absolute pressure.
Be applicable
● Mud, coal slurry
● paint, crude oil
● Viscous media such as chemical coatings
● Viscous media and plastic rubber manufacturing equipment
| Measuring range: | see range code |
| Overload range: | ≤100mbar, 4×;≤200bar, 2× |
| Accuracy: | 0.2%, 0.5% |
| Linearity: | ±0.2% |
| Repeatability: | ≤±0.1FS |
| stability: | Better than 0.01% of span per year |
| Temperature effects: | ＜±0.02%FS/K |
| Response time: | <1ms(10…90%FS） |
| powered by: | 10～30V DC |
| load: | ≥10KΩ(0..10V）,≥5KΩ |
| ≤(UB-10)V/ 0.02A (4～20mA) | |
| energy consumption: | Signal current (2-wire), 8mA (3-wire) |
| Electrical Protection: | Overload/Reverse Phase Protection |
| Ambient temperature: | -30~85℃ |
| Medium temperature: | -25~80℃ |
| Storage temperature: | -30~100℃ |
| Protection class: | IP65 |
| shell material: | Stainless Steel 304 |
| Wetted material: | Stainless Steel 316L |
| seal: | Fluorine rubber |
| weight: | 0.10kg |
| Electrical connections: | Herssman joint (DIN43650) |

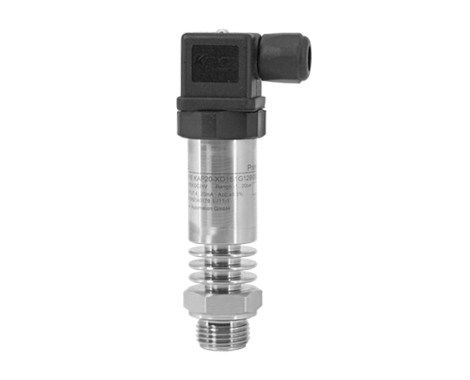

| KAP19- | Flat Diaphragm Pressure Transmitter | ||||||
| range | |||||||
| Gauge pressure (for the range, see the range code table. This item is for general application selection) (*) | |||||||
| Absolute pressure (see range code table for range) | |||||||
| Accuracy class | |||||||
| 0.20% (Level 0.2) | |||||||
| 0.50% (level 0.5) | |||||||
| Process connection (male thread) | |||||||
| Thread G1/2 | |||||||
| Thread M20*1.5 | |||||||
| output | |||||||
| 4~20mA output(*) | |||||||
| 0~5V output | |||||||
| Electrical connections | |||||||
| Hessman joint (DIN43650) | |||||||
| (special option) VARIO | |||||||
| 42*42 square LCD digital display unit | |||||||

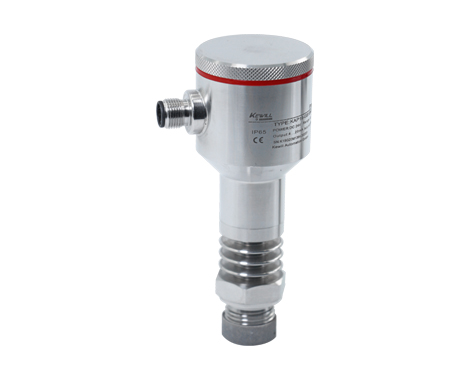

| Cast aluminum sealed case | |||||||
| The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples. | |||||||
| Remarks: * marked as fast delivery or ready stock | |||||||
