● Split probe fully sealed structure, resistant to strong corrosion
● The maximum distance between the host and the probe can reach 1000 meters
● Provide 6 relay switch signals
● Can set parameters by remote control, easy to operate
● It can be added with distribution heating probe, which is suitable for cold areas or industrial and mining areas
| range | |
| liquid level | 4 meters |
| 6 meters | |
| 8 meters | |
| 12 meters | |
| 20 meters | |
| 30 meters (40 meters) | |
| Material level | 3 meters |
| 4 meters | |
| 6 meters | |
| 10 m | |
| 15 meters (20 meters) | |
| working condition | |
| temperature range: | -40ºC ... + 85ºC （LCD ： -20ºC ... + 70ºC） |
| Protection level: | IP68 probe, IP67 mainframe |
| Installation method: | Thread, flange or bracket (main unit wall mount) |
| parameter settings: | 3-position touch buttons |
| Shell material: | ABS |
| Electrical parameters | |
| Display form: | 2-line 14-bit LCD (with backlight) |
| output load | 0...500Ω |
| Current output: | 4...20mA or RS485 communication |
| Relay output: | Upper and lower limit alarm control (electric heat tracing control) |
| Input power: | DC24V（±10%） |
| AC85...265V | |
| Cable Assembly: | PG9/PG11/PG13.5 |
| Cable diameter | F6...F12mm |
| single wire diameter | F0.5...F1.78mm |
| technical parameter | |
| Output Resolution: | 0.03% of actual range |
| Temperature compensation: | Full range automatic |
| Pressure range: | ±0.1MP |
| Detection cycle: | 1 second |
| Measurement error: | 0.002 |
| Sound beam angle | 10º(3db) 4.6.8m type |
| 5º(3db) 12.15.20.30.40m horn probe | |
| Digital Communications: | RS485 serial communication, standard MODBUS protocol |

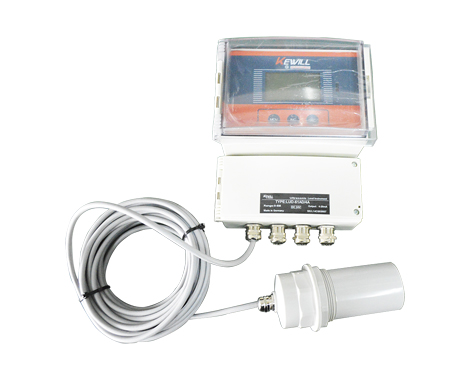

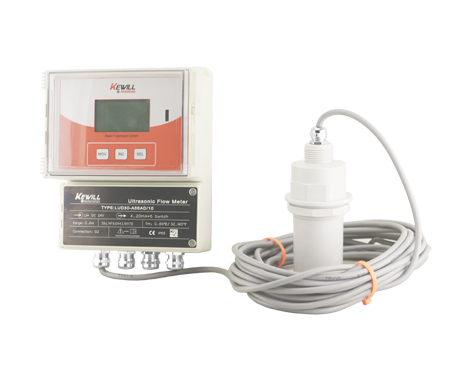

| LUD30- | Split type ultrasonic level gauge (level gauge) | |||||
| Type of measuring medium | ||||||
| Relatively calm liquid, flat solid | ||||||
| Bulk, granular solid | ||||||
| Measuring range (see range code table) | ||||||
| 6m | ||||||
| output | ||||||
| 4...20mA output | ||||||
| 4...20mA output + 2 switch outputs (5A relay signal) | ||||||
| 4...20mA output + 6 switch outputs (5A relay signal) | ||||||
| Power supply | ||||||
| DC24V | ||||||
| AC85...265v | ||||||
| (special option) VARIO | ||||||
| RS485 communication (up to 5 relay switches are provided when this option is selected) | ||||||
| Electric heat tracing function | ||||||
| The above selection table does not contain selection codes. For selection, please contact the sales staff or email to sales@kewill-auto.cn to obtain a complete sample. | ||||||
