Introduction

Principle & Structure

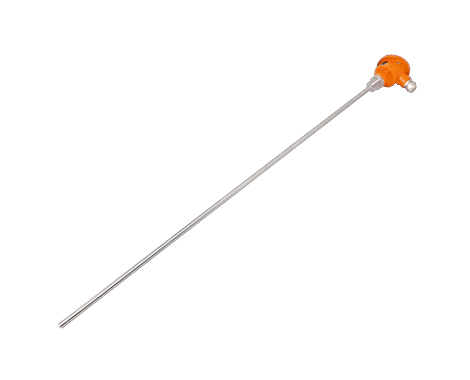

TK60 includes a thermocouple probe. The electrode of the standard thermocouple is composed of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, a thermoelectric potential will be generated, and the thermoelectric potential corresponds to the temperature value. The standard probe is N, B, S, J, K, T divisions, other divisions can be provided according to user requirements.

Features

Simple installation, a variety of ranges are available, and probes of various specifications are available

Compact size and wide range (0…1800°C)

High pressure resistance, can reach 100bar

A variety of graduation numbers are optional

Optional distribution cabinet-mounted control table for connection use

application

It is suitable for measuring water, oil and gas media. It can be used in water supply systems, hydraulic and pneumatic devices, cooling systems, heating systems, air conditioning systems, automation engineering, etc.

technical parameter

sensor:B,S,K,E,T graduated thermocouple optional
Measuring range:0…1600°C (B) Material: Platinum Rhodium 30-Platinum Rhodium 6
0…1300°C(S) Material: Platinum Rhodium 10-Platinum
0…1200°C (K) Material: NiCr-NiSi
0...750°C (E) Material: NiCr-CuNi
200°C...350°C (T) Material: Copper - Copper Nickel
Sensor wire diameter:0.5mm
Signal output:Thermoelectric potential signal (mV)
Accuracy class:Level 2 (Level 1 optional)
Pressure:Ø6 type probe 40 bar
Ø8-Ø25 probes 100bar


Protection class:IP65
Shell material:Zinc alloy
Wetted part material:0…1600°C (B) Material: Corundum Porcelain Tube
0…1300°C(S) Material: High-aluminum porcelain tube
0…1200°C/0…1100°C(K)
Material: Stainless steel
0…900°C/0-750°C (E) Material: Stainless Steel 316
200…350°C(S) Material: Stainless Steel 316
Electrical connections:Terminal wiring

Selection table

TK60-Thermocouple temperature sensor

Measuring range and division

0...800℃(B)
0...1300℃(S)
0...1200℃(K)
0...1100℃(K)
0...900℃(K)
0...750℃(E)
0...350℃(T)
Probe diameter

F6
F8
F16
Φ25
Process connection

Fixed external thread: G1/2''

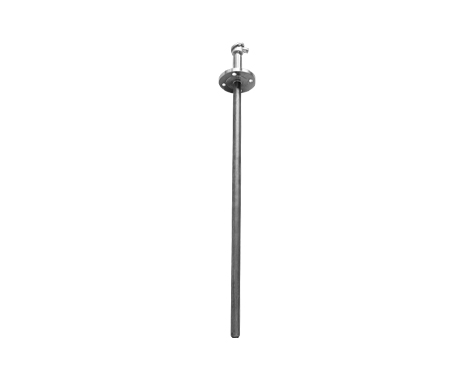

Fixed flange: DN50
Living flange: DN50
Other connection methods can be customized
Probe length L1

100mm/10001000mm
200mm/15001500mm
300mm/20002000mm
500mm/SOther lengths can be customized
Junction box material

Cast aluminum junction box
Stainless Steel 1.4301(304) Junction Box
Base protection tube material

Corundum porcelain tube (maximum operating temperature 1800℃)
High Alumina Porcelain Tube (Maximum Operating Temperature 1500℃)
Stainless steel 1.4435 (316L) (maximum operating temperature 950℃)
This PDF does not contain the complete data of the selection table. For selection, please contact the sales staff or email to sales@kewill-auto.cn to obtain the complete sample.

Optional: Welding accessory C

KTW-Welded base


G1/2 base
G1/4 base
Shaped connection

Stainless steel 1.4301(304)
Stainless steel 1.4435 (316L)
Customized Material Customized

Optional: protective sleeve D

KTC-protective sleeve Cannula


Stainless steel 1.4435 (316L)
High Alumina Porcelain Tube (Maximum Operating Temperature 1500℃)
Corundum porcelain tube (maximum operating temperature 1800℃)

Length, thread, diameter are matched with the main product
Separate size, thread, diameter by agreement
