Introduction

Principle & Structure

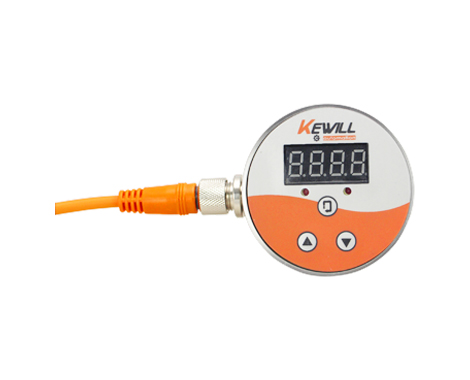

TK58 digital temperature transmitter uses PT100 platinum thermal resistance, the resistance value will change with the change of temperature. 100 after PT means that its resistance value is 100 ohms at 0°C, and its resistance value is about 138.5 ohms at 100°C. When the PT100 is at 0 degrees Celsius, its resistance value is 100 ohms, and its resistance value will increase approximately uniformly as the temperature rises.

Features

● The part in contact with the medium is made of stainless steel with high temperature resistance.

● Easy to install, a variety of connection options are available.

application

It is suitable for measuring water, oil and gas media. It can meet different requirements for temperature control in hydraulic, lubricating and transmission systems. It is used to detect whether the temperature exceeds the maximum or minimum limit.

technical parameter

Measuring range:			-200℃～500℃ (see selection table for details)
Pressure rating:			10 bar, 40 bar, 100 bar
Medium temperature:			Max 600℃
output:			PT100 platinum thermal resistance
			4-20mA analog
			PNP switch
Protection class:			IP65
Wiring:			M12 aviation socket connector
Wetted part material:			Stainless steel 1.4301 (304)
			Stainless steel 1.4435 (316L)
shell material:			Stainless steel 1.4301 (304)

Regular range code table

code	Corresponding range	code	Corresponding range
/N1	-100~0°C,	/P4	0～120°C,
/N2	-50～0°C,	/P5	0～150°C
/N3	-50～50 °C;	/P6	0～200°C,
/P1	0～50 °C;	/P7	0～450°C,
/P2	0～80 °C;	/ P8	0～500°C
/P3	0～100 °C;	/P9	Any specified range

Selection table

TK58-

Temperature transmitter (including switch value)

output type

PT100 platinum thermal resistance

4-20mA analog output

4~20mA+ two-way switch value (PNP)

Probe diameter

Ø6 up to 10 bar

Ø8 can withstand pressure 40 bar (*)

Ø10 up to 100 bar

Connection method

External thread G1/2 (*)

M20*1.5 external thread

External thread G1/4

Sanitary clamp type

M27*2 external thread

Customized

Probe length (without thread)

15mm（*）

75mm

25mm（*）

100mm

50mm

Customized

temperature range

For details, please refer to "Regular Range Code Table"

The above selection table does not contain selection code, if you need a selection code, please contact us or fill in your information

Remarks: "*" is marked as stock standing or fast delivery
