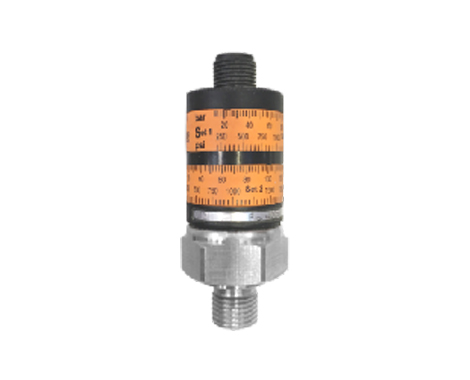

KFP70 electronic pressure switch is a pressure measurement and control product integrating pressure measurement, output and control. The front end of the product adopts an oil-filled pressure sensor with an isolation film. The output signal is amplified by a high-precision, low-temperature drift amplifier. The signal processed by the operation controls the 1-way or 2-way switch to measure and control the pressure of the control system.
| Applicable medium: | Pressure: Relative pressure liquids and gases | |
| Electrical Design: | DC PNP | |
| Working voltage [V] | 9.6…32 DC | |
| Current consumption [mA] | <25 | |
| Edge resistance [MΩ] | ＞100（500 V DC) | |
| reverse phase protection | Yes | |
| output | 1 switch or 2 switches | |
| output function | Normally open | |
| Current load [mA] | 500 | |
| Voltage drop [V] | <2 | |
| Short circuit protection | pulse | |
| Overload protection | Yes | |
| Switching frequency [Hz] | 100 | |
| EMC Electromagnetic Compatibility | EN 61000-4-2 ESD Electrostatic Discharge: 4 kV CD / 8 Kv AD | |
| EN 61000-4-3 HF radiated electromagnetic field radiation: 10 V/m | ||
| EN 61000-4-4 Burst transient pulse: 2 KV | ||
| EN 61000-4-6 HF conducted：10 V | ||
| impact resistance | DIN IEC 68-2-27:50 g(11 ms) | |
| Seismic | DIN IEC 68-2-6: 20 g（10…2000 Hz) | |
| MTTF | 704 | |
| show | Running LED green | |
| Switching status LED yellow | ||
| interface | M12 connector | |
| Measuring range: | 0…400 bar | 0…5800 psi |
| Compressive strength: | 600 bar | 8700 psi |
| burst pressure | 1600 bar | 23200 psi |
| switch point | 12…400 bar | 175…5800 psi |
| Hysteresis | 8 bar | 116 psi |
| deviation | (% of end value of measuring range) | |
| Switch point accuracy | < ± 2.5 | |
| Characteristic curve deviation | ＜ ± 1.5 （BFSL)/＜ ± 2.5(LS) | |
| Repeatability | < ± 0.5 | |
| Temperature change rate (/10 K) | < ± 0.5 | |
| In temperature range [°C] | 0…80 | |
| Switch point adjustment | Locating ring | |
| Ambient temperature [°C] | -25…80 | |
| Storage temperature [°C] | -40…100 | |
| Enclosure rating | IP67 | |
| shell material | PBT (Pocan); PC (Makrolon); | |
| FPM (Viton); Stainless Steel (316S12) | ||
| Minimum switching period | Fifty million | |
| Tightening torque [Nm] | 25 | |
| Weight [kg] | 0.094 |
| KFP70- | Electronic pressure switch (adjustable) | ||||
| Measuring range | |||||
| 0...400 bar (0...5800 psi) | |||||
| 0...250 bar (0...3625 psi) | |||||
| 0...100 bar (0...1450 psi) | |||||
| 0...25 bar (0...363 psi) | |||||
| 0...10 bar (0...145 psi) | |||||
| Interface thread (external thread) | |||||
| G1/4 male thread | |||||
| Output signal type | |||||
| 1-way switch (normally open) | |||||
| 2-way switch (normally open) | |||||
| type | |||||
| M12 patch cord 2 meters | |||||
| The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples. | |||||
