Introduction

principle

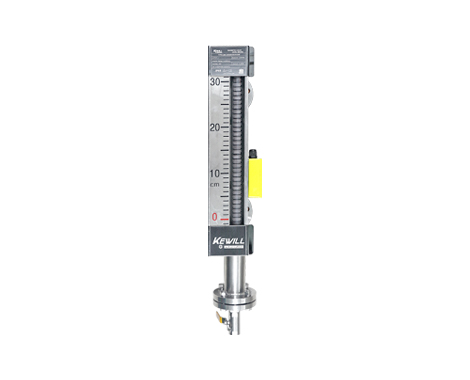

The LMS magnetic column level gauge is developed based on the principle of buoyancy (Archimedes' law) combined with magnetic coupling. When the liquid level in the measured container rises and falls, the float in the main pipe of the level gauge also rises and falls, and the float The permanent magnet steel inside is transmitted to the field indicator (ruler) through magnetic coupling, which drives the yellow, black (or red and white) turning column to rotate. When the liquid level rises, the turning column turns from white to red. When the liquid level drops, the turning column turns from red to white. The junction of red and white of the indicator is the actual height of the medium level gauge in the container.

LMS magnetic flap level gauge is used for real-time, accurate, safe and reliable continuous measurement of process liquid level. The float adopts a 360° ring magnetic design, and the shell is completely sealed and hard to pressure. The indicator adopts evacuated glass tube packaging technology, and the indication is clear, which eliminates the problems of vapor condensation and liquid leakage that are often encountered in traditional glass tube liquid level gauges. A full range of liquid level transmitters, liquid level switches and magnetic flap liquid level gauges can be provided to achieve remote monitoring and control of liquid level, interface and other signals.

application

Boiler: Drum Level

Electricity: Auxiliary machine (high plus, low plus, deaerator, condenser, shaft seal heater)

chemical water treatment

Coal chemical industry: methanol, dimethyl ether, synthetic ammonia, urea, coal-to-oil,

Petrochemical: oil and gas exploration and centralized transportation, oil refining, ethylene,

Fine chemicals: methane chloride, ethylene oxide, aniline,

Others: metallurgy, papermaking, water treatment

LMS series liquid level gauges are equipped with liquid level control and alarm switches, which can realize liquid level control, alarm and interlocking, and equipped with built-in integrated liquid level transmitters, which can convert liquid level (interface) signals into two-wire system 4 ~20mADC standard signal to realize long-distance detection and control of liquid level.

technical parameter

Measuring range:0~300mm (maximum 15000mm)
measurement accuracy:±10mm
Working pressure:.10.1MPa ~ 1.6MPa
Operating temperature:0~100℃
Medium viscosity:≤0.02Pa.S
Media Density:see selection table
Media density difference:≥0.15g/cm?
Connection flange specifications:DIN2573-2656 German standard
(HG20592~20635‐97 is optional for mainland sales)
Pressure rating:DN20 or DN25; PN0.6, 1.0, 1.6, 2.5
Wetted material:1.4301 (stainless steel 304)
1.4435 (stainless steel 316L)
Instruct the column to flip:Vacuum tube two-color turning beads (yellow liquid black gas)
Vacuum tube bi-color LED (green liquid red gas)
Indicator ruler:Stainless steel ruler, a variety of engineering units optional

Selection table

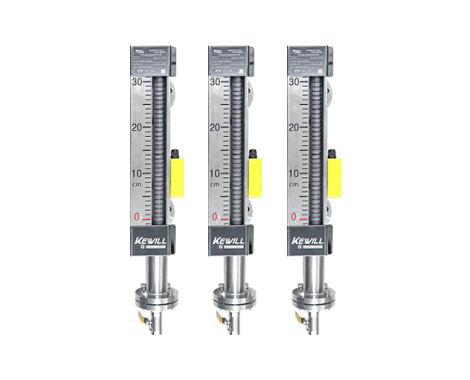

LMS-ASide Mounted Magnetic Flip Column Liquid Level Gauge
LMS-BSide-mounted magnetic flip column level gauge (LED luminous display)

range

0-300mm
0-500mm
0-1000mm
Customized length up to 6 meters (selection code: 6000)
Liquid level transmission output

No remote signal output
Equipped with waterproof 4~20mADC remote transmitter
Equipped with flameproof 4~20mADC remote transmitter
HART protocol remote transmitter
Equipped with LM magnetostrictive liquid level transmitter, output 4~20mADC
Liquid level switch output

Optional liquid level switch output, if 2-way switch is required, select B2
no output
Wetted part and flange part material

Made of stainless steel 1.4301 (304)
Material is stainless steel 1.4435 (316L)
(special alternative) VARIO

No special accessories
Optional accessories: KD001 intelligent light bar indicating digital display instrument (vertical)
Optional accessories: KD002 intelligent light bar indicating digital display instrument (horizontal)
Insulation accessories: steam jacket
Insulation accessories: electric heat tracing
Optional accessories: drain valve ball valve
Optional accessories: sewage shut-off valve
The above selection table does not contain selection codes. For selection, please contact the sales staff or email to sales@kewill-auto.cn to obtain a complete sample.

Process parameters: (note with the sales engineer when orderingMedium density g/cm³≤0.5g/cm³;≤0.6g/cm³;≤0.7g/cm³;≤0.8g/cm³;>0.8g/cm³
Measuring range (mm)0~300mm(15000mm)
Working pressure value (MPa)PN0.6、1.0、1.6、2.5


Other selection table

LMS-AQuartz two-color optical level gauge
LMS-BDirect view glass plate type level gauge

300Range: 0-300mm (can be customized)
