Introduction

principle

LV30 series products are divided into two types: analog output type and switch output type.

Analog output type: The magnetic floating ball continuously triggers the reed switch in the detection rod with the change of the liquid level, so that the total resistance of the sensor changes, and the signal is converted into a standard 4…20mA signal output by the transmitter.

Switch quantity output type: When the liquid level rises or falls, it drives the stainless steel magnetic float to move up and down, and the float triggers the reed switch in the detection rod to send out a signal.

Features

Long life, can be used for limit monitoring or continuous monitoring of liquid level. The switch type can provide multi-ball and multi-point monitoring, and the analog type can be used in conjunction with monitoring instruments to realize upper and lower limit alarms or continuous control.

application

Low price and long life, it can be used for limit monitoring or continuous monitoring of liquid level. The switch type can provide multi-ball and multi-point monitoring, and the analog type can be used in conjunction with monitoring instruments to realize upper and lower limit alarms or continuous control.

technical parameter

Pressure resistance:10bar
16bar
50bar
Media Density:≥0.45g/cm³
Switch type:Contact Type: Reed Switch
Contact capacity: 220VAC, 0.5A
Output: normally open/normally closed
Analog type:Power supply: 24V±5%DC
Output: 4...20mA
Load: ≤750Ω
Wiring:Cast aluminum or stainless steel terminal wiring
Harding Connector Wiring
Float:Stainless steel 1.4435 (316L)
Stainless steel 1.4301 (stainless steel 304)
Measuring rod:Stainless steel 1.4435 (316L)
PTFE-coated stainless steel
Medium temperature:Switching value: -20...150℃
Analog: -20...75℃

Threaded connection G2
Process connection:Flange connection DN50
Protection class:IP65

Selection table

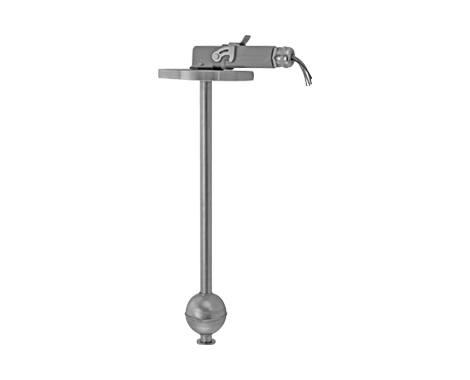

LV30-Float type liquid level switch (liquid level gauge)

style type

Cast aluminum junction box style, M20*1.5 wiring

Harding Connector Style,

Stainless steel 1.4301 junction box, M12*1.0 aerial plug-in

output type

Switch output

Analog output (4~20mA)
Measuring range

250mm

500mm

750mm

1000mm

1250mm

1500mm

Customized length (eg: L effective length 335mm, selection code: 335)

number of action points

1 (mandatory for analog output)

2 (Only for switch output type)

3 (Only for switch output type)

4 (Only for switch output type)

X pieces (Only for switch output type products)

Connection method

Threaded connection G2

Flange connection DN50 flange

float size

Φ52*52*Φ15 stainless steel 1.4435 spherical

Φ61*51*Φ15 stainless steel 1.4435 cylindrical

Φ49.5*37*Φ15.5 PP polypropylene cylindrical type

Stroke rod material

Stainless steel 1.4301 (stainless steel 304)

Stainless steel 1.4435 (stainless steel 316L)

PP polypropylene

Pressure rating

10bar

16bar (high pressure customized type)

50bar (high pressure customized type)

(Special option) VARIO
    Corrosion-resistant PTFE coating on wetted parts
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
