Introduction

Principle & Structure

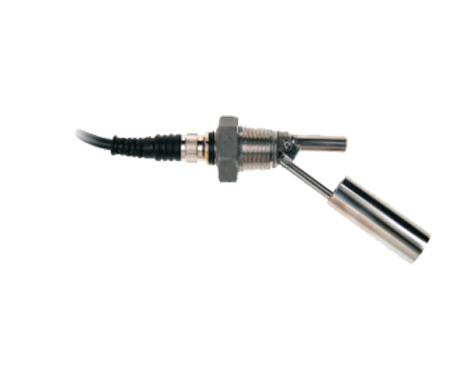

A reed switch is installed in the closed non-magnetic stainless steel tube, and a ring magnet is installed in the float ball. The float ball moves with the rise or fall of the liquid level, thereby triggering or releasing the magnetic reed switch in the stainless steel tube and sending a switch signal.

Features

It can be installed from the outside to the inside on the side, with a compact and sturdy structure, reliable performance, good repeatability, long life and high temperature resistance.

technical parameter

Material:Stainless steel 1.4435 (316L)
Contact capacity:50W/SPST
Maximum voltage:24VDC/220VAC
Maximum switching current:0.5A
Maximum passing current:1A
Maximum working pressure:16bar
Medium temperature:-10~80℃ (normal temperature application type)
-10~120℃ (high temperature application type)
Contact Type:Reed Switch
output:Normally Open, Normally Closed, Normally Open/Normally Closed
Media Density:≥0.75g/cm³
Connection size:RC1/2 male thread
Φ50.3 sanitary clamp

Selection table

LV20-A/1Direct double line type (normally open)
LV20-A/2Direct double line type (normally closed)
LV20-B/1Connector type (normally open)
LV20-B/2Connector type (normally closed)
LV20-Cmini plug type (normally open + normally closed)
LV20-Dmini plug type (clamp connection)


The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.

(special option) VARIO
/H-10~120℃ (high temperature type)
