Introduction

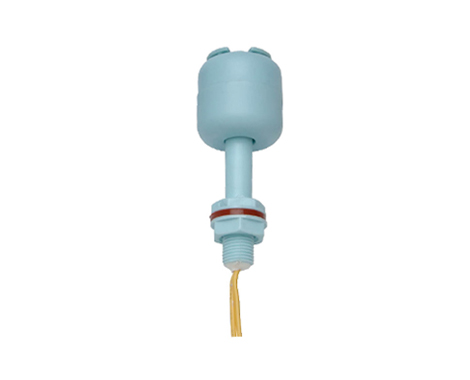

modelLV05ANOLV05ANCApplicable media
power50W50w
switching voltage220VAC220VAC
switch current1.5A1.5A
temperature range-10~85°C-10~85°Cwater
signal typedry reed switchreed switch normally closed
Body rod materialPPPP
Float and Nut MaterialPPPP
Pressure resistance5bar5bar
medium density≥0.45g/cm3≥0.45g/cm3
Way out2-wire2-wire
Process connectionM10*1.5M10*1.5
Protection classIP68IP68


technical parameter

Selection table
