Features

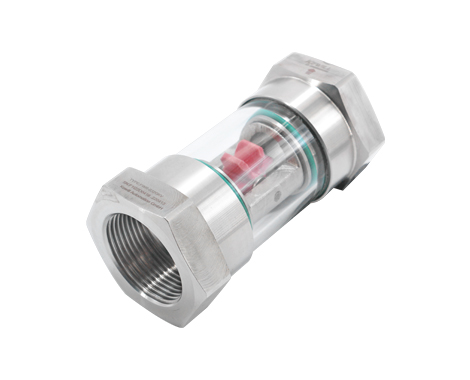

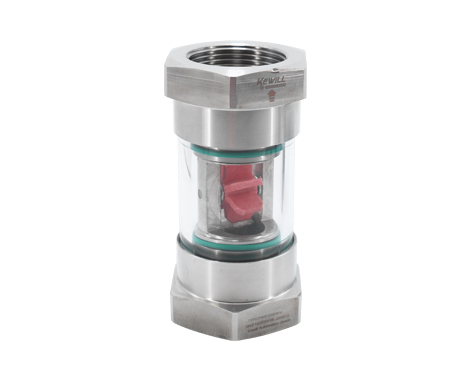

● The machine measures the liquid display, the rotation of the motor rotor is proportional to the flow rate, the speed of the rotor is clearly visible, and the flow rate can be measured. Copper alloy or stainless steel 316L construction.
● The inner surface of the glass can be cleaned mechanical structure
● 360 degree visual without dead zone
● Pressure resistance: 16bar
● Medium temperature: max.100℃
● Average pressure loss: 0.25bar at Qmax
| G | model | Maximum flow | Rotation minimum flow L/min | L | SW | H | weight | |||||||||||||||||
| mm | L/min (water) | water | 40 mm²/s | 41-150 mm²/s | mm | mm | mm | kg | ||||||||||||||||
| brass | G1/4 | FWR-008GM | 4 | 0.4 | 2.0 | 3.0 | 72 | 36 | 9 | 0.35 | ||||||||||||||
| G3/8 | FWR-010GM | 8 | 0.6 | 2.0 | 3.0 | 72 | 36 | 9 | 0.35 | |||||||||||||||
| G1/2 | FWR-015GM | 12 | 1.0 | 3.0 | 3.5 | 86 | 46 | 13 | 0.65 | |||||||||||||||
| G3/4 | FWR-020GM | 25 | 1.0 | 3.0 | 3.5 | 94 | 46 | 16 | 0.65 | |||||||||||||||
| G1 | FWR-025GM | 40 | 1.6 | 3.0 | 3.5 | 104 | 46 | 16 | 0.65 | |||||||||||||||
| G1 1/4 | FWR-032GM | 90 | 8.0 | 4.0 | 5.0 | 120 | 65 | 19 | 1.6 | |||||||||||||||
| G1 1/2 | FWR-040GM | 100 | 8.0 | 5.0 | 5.0 | 130 | 65 | 20 | 1.7 | |||||||||||||||
| Stainless steel | G1/4 | FWR-008GK | 4 | 0.4 | 2.0 | 3.0 | 72 | 72 | 72 | 0.35 | ||||||||||||||
| G3/8 | FWR-010GK | 8 | 0.6 | 2.0 | 3.0 | 72 | 72 | 72 | 0.35 | |||||||||||||||
| G1/2 | FWR-015GK | 12 | 1.0 | 3.0 | 3.5 | 86 | 86 | 86 | 0.65 | |||||||||||||||
| G3/4 | FWR-020GK | 25 | 1.0 | 3.0 | 3.5 | 94 | 94 | 94 | 0.65 | |||||||||||||||
| G1 | FWR-025GK | 40 | 1.6 | 3.0 | 3.5 | 104 | 104 | 104 | 0.65 | |||||||||||||||
| G1 1/4 | FWR-032GK | 90 | 8.0 | 4.0 | 5.0 | 120 | 120 | 120 | 1.6 | |||||||||||||||
| G1 1/2 | FWR-040GK | 100 | 8.0 | 5.0 | 5.0 | 130 | 130 | 130 | 1.7 | |||||||||||||||
| FWR-…GM | FWR-…GK | |||||||
| shell | Bronze MS58 | Stainless steel 1.4305 | ||||||
| motor rotor | POM (red) | POM (red) | ||||||
| window tube | Glass | Glass | ||||||
| cleaning device | Polyene material | Polyene material | ||||||
| seal | NBR | NBR |
| FWR- | flow indicator | |||||||
| Applicable pipe diameter | ||||||||
| Nominal diameter DN8~G1/4 | ||||||||
| Nominal diameter DN10~G3/8 | ||||||||
| Nominal diameter DN15~G1/2 | ||||||||
| Nominal diameter DN20~G3/4 | ||||||||
| Nominal diameter DN25~G1 | ||||||||
| Nominal diameter DN32~G1 1/4 | ||||||||
| Nominal diameter DN40~G1 1/2 | ||||||||
| Connection method | ||||||||
| Internal thread interface | ||||||||
| Material selection | ||||||||
| Bronze MS58 | ||||||||
| Stainless steel 1.4435 (316L) | ||||||||
| The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples. | ||||||||
