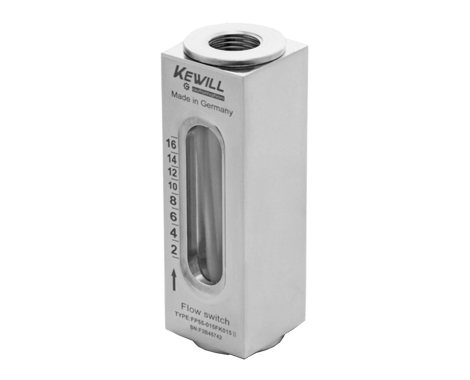

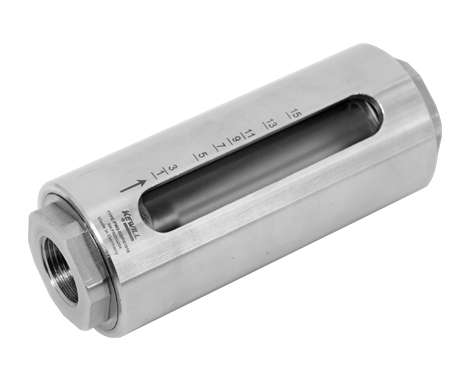

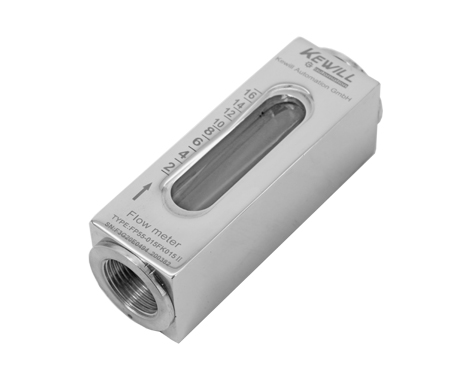

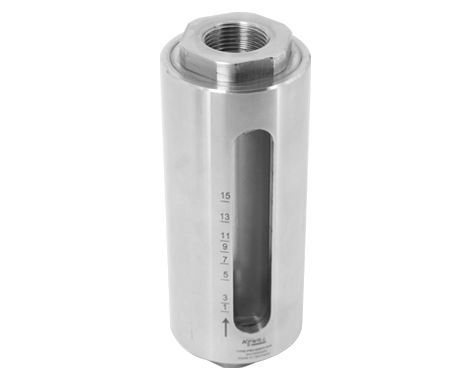

Introduction

Principle & Structure

The float of the flowmeter operates on the principle of variable area and floats in a conical metering tube.

Features

Full panel scale display

application

Gas-liquid dual-use, industrial automation / mechanical equipment / air compression industry / refrigeration and air conditioning.

technical parameter

Parameters Table

model typePressure value PN barMaximum flow L/min (oil)Display range L/min (oil)Total KG (k1)
FW2-008F…003100600.6..80.62
FW2-008F…008100600.6..80.62
FW2-008F…015100601…150.62
FW2-010F…003100600.6..80.7
FW2-010F…008100600.6..80.7
FW2-010F…015100601…150.7
FW2-015F…003100600.6..80.8
FW2-015F…008100601…150.8
FW2-015F…015100602..180.8
FW2-015F…028100602…280.8
FW2-020F…008100600.6..81.1
FW2-020F…015100601…151.1
FW2-020F…028100602..181.1
FW2-020F…028100802…281.1
FW2-025F...008100600.6..81.2
FW2-025F...015100601…151.2
FW2-025F...028100802…281.2

Selection table

FWR-flow indicator

Applicable pipe diameter

Threaded port G1/4 Nominal diameter DN8

Threaded port G3/8 Nominal diameter DN10

Threaded port G1/2 Nominal diameter DN15

Threaded port G3/4 Nominal diameter DN20

Threaded port G1 Nominal diameter DN25

Threaded port G1 1/4 Nominal diameter DN32

Connection method

Female thread (female connector)

Material description

POM reinforced plastic liquid body

Stainless steel 1.4301(304) Liquid body

Stainless steel 1.4435 (316L) liquid body

Display range interval
Display range: 0.1…3L/min
Display range: 0.5…8L/min
Setting range: 1…15L/min
Setting range: 2…28L/min
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
