Introduction

Principle & Structure

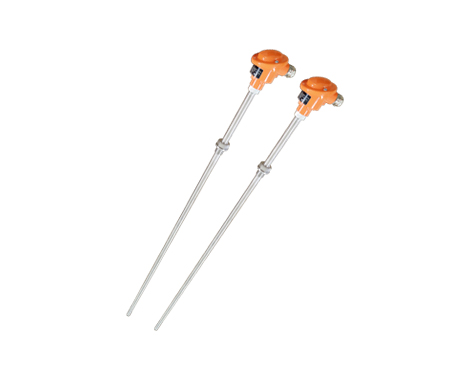

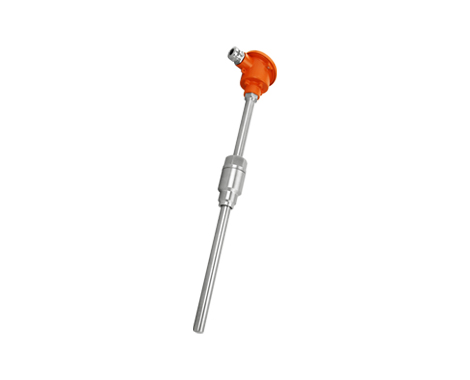

TK53 contains a PT100 probe, the resistance of PT100 platinum thermal resistance will change with the change of temperature. 100 after PT means that its resistance value is 100 ohms at 0°C, and its resistance value is about 138.5 ohms at 100°C. When the PT100 is at 0°C, its resistance value is 100 ohms, and its resistance value will increase approximately uniformly as the temperature rises.

main feature

easy installation

Various ranges are available

A variety of specifications probe optional

All stainless steel shell, compact and sturdy structure, strong anti-interference ability

Standard way out

application

Suitable for measuring water, oil and gas media

It can be used in water supply systems, hydraulic and pneumatic devices, cooling systems, heating systems, air conditioning systems, automation engineering, etc.

technical parameter

ange:200...0°C,­100...0°C,­50...0°C, ­50...50 °C;
0...50 °C; 0...80 °C; 0...100 °C; 0...120°C;
0...150°C,0...200°C,0...450°C,0...500°C;
The customer can arbitrarily specify the range between -200...500°C ;
Accuracy class:PT100 Class A
PT1000 Class A
Probe size and withstand voltage:Φ6 probe    40 bar
Φ8 probe    40 bar
Φ10   probe   100 bar
Protection class:IP65
output signal:PT100
PT1000
Supply voltage:No power required

Response time:0.5...3s ( 1s typical )
Ambient temperature:30...85°C
Common interface:G1/2
G1/4
M20*1.5
Electrical part material:black NBR
Shell material:Stainless steel 1.4301(304)
Wetted part material:Stainless steel 1.4435 (316L)
Optional protective tube material:Stainless steel 1.4301(304)
Stainless steel 1.4435 (316L)
Titanium alloy Ti
Hastelloy HB
Probe and sealing surface lined with PTFE
Electrical connections:Junction box

Selection table

TK53-RTD temperature sensor

Signal output

PT100 output

PT1000 output

Probe Diameter (D)

Φ6 Pressure 40 bar (*)

Φ8 Pressure 40 bar

Φ10 pressure 100 bar

Threaded connection

G1/2

G1/4

M20*1.5

Customized

Probe length (L)
1515mm(*)
2525mm
5050mm(*)
7575mm
100100mm(*)

Customized

Electrical outlet

M20*1.5 cast aluminum self-junction box

temperature range

For details, please refer to "Regular Range Code Table"
This PDF does not contain the complete data of the selection table. For selection, please contact the sales staff or email to sales@kewill-auto.cn to obtain the complete sample.
Remarks: "*" is marked as stock standing or fast delivery

Optional: cable accessory B

KEC-Signal cable (matched with the main product of this series)


2m cable length
5m cable length
Required line length ( m )

ordinary cable
shielded cable

Optional: Welding accessory C

KTW-Welded base


G1/2 base
G1/4 base
Shaped connection

Stainless steel 1.4301(304)
Stainless steel 1.4435 (316L)
Customized Material Customized

Optional: protective sleeve D

KTC-protective sleeve Cannula


Stainless steel 1.4301(304)
Stainless steel 1.4435 (316L)
Titanium alloy Ti
Hastelloy HB
Probe and sealing surface lined with PTFE

Length, thread, diameter are matched with the main product
Separate size, thread, diameter by agreement
